Samsung SGH-U800 physical extraction

Question

I'm trying to perform a physical NAND extraction from an old Samsung SGH-U800 phone to recover deleted data. The current version of Samsung Tool PRO v21.9 allows backing up only QCN data, which, as I understand, is limited to the CPU chip's data file. I didn't find anything useful there. When I downgraded to an earlier version (v17.9), another option appeared: Dump -> Full NVM and NVM. Unfortunately, this is also not a physical image of the NAND. The content of that file looks like a regular text file. Is there any other way to obtain a physical extraction?

Answer 1

Hello. Full dump option not avaible in this software. As i remember this phone dont have classic 9008 port, so full dump possible via jtag only.

Comments

Does anyone have the ISP pinout for this device? Or perhaps for this NAND?


---

Its not emmc, isp dont work with nand.

---

Do you have any other ideas for a solution?

---

Jtag or nand socket.

---

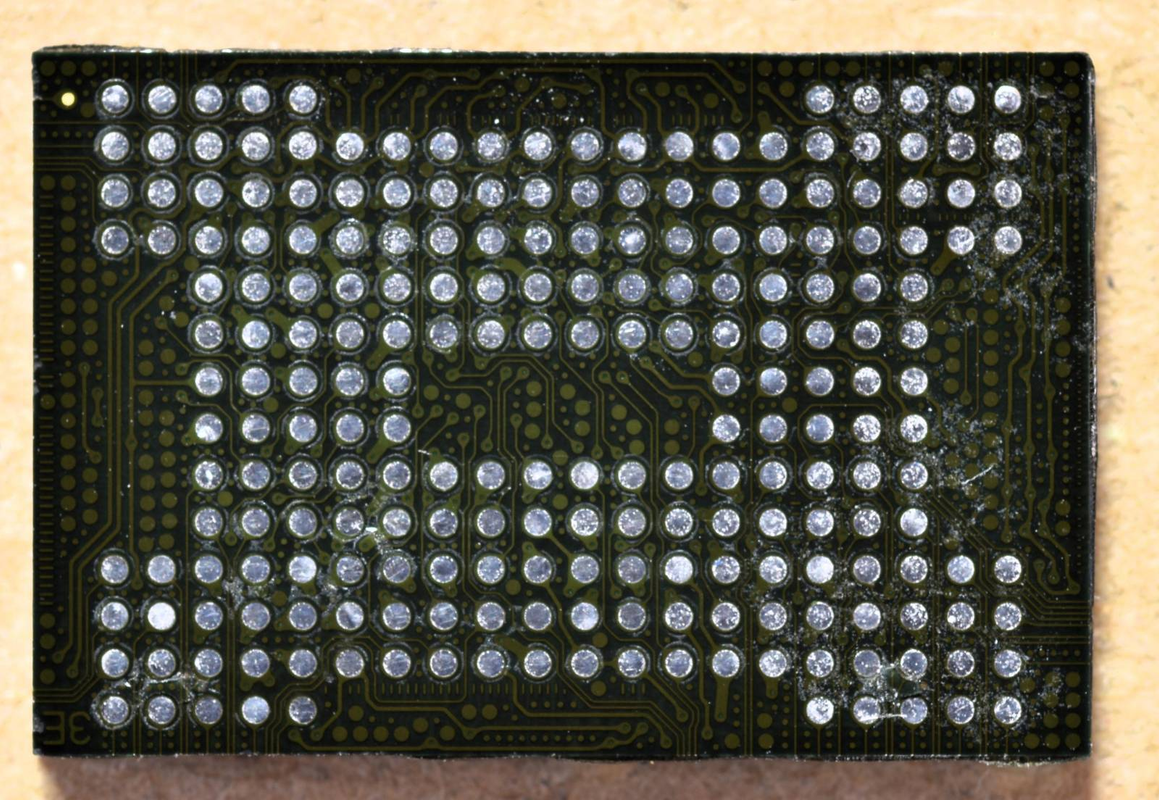

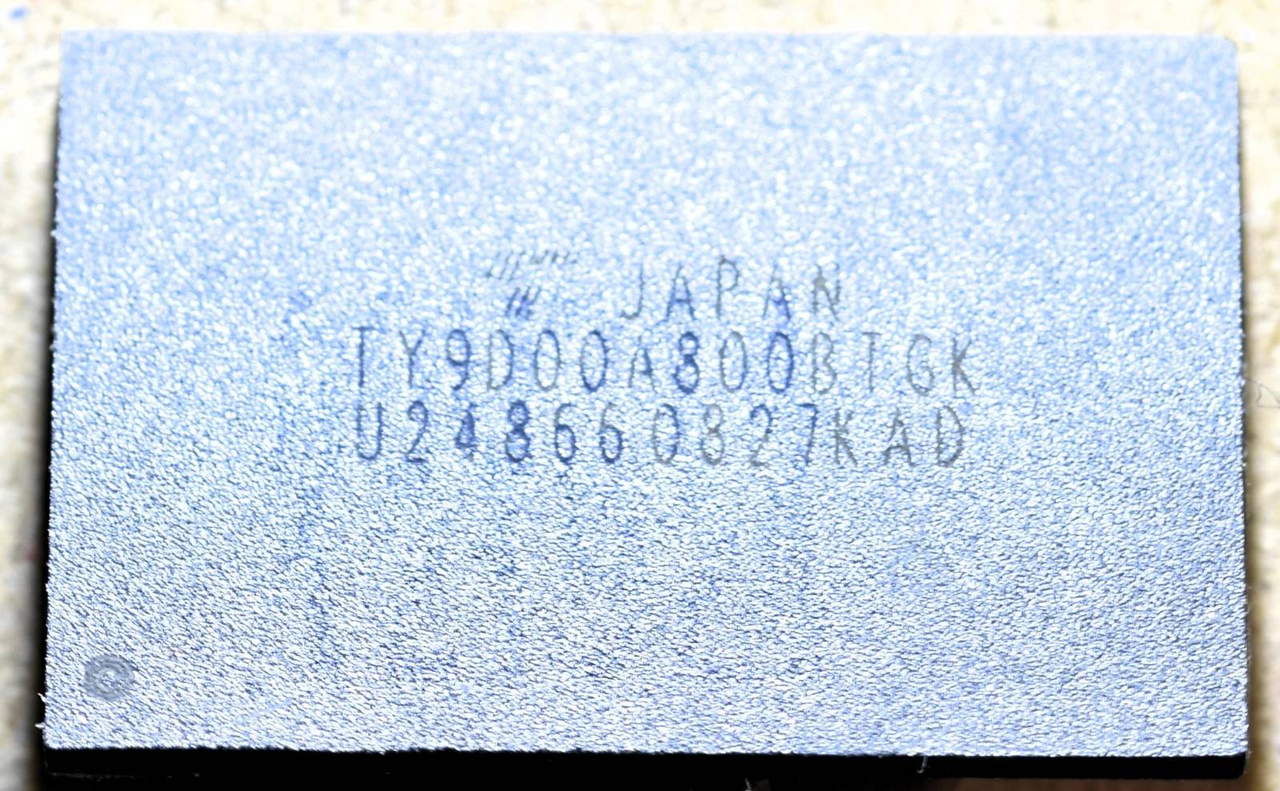

Unfortunately, this memory chip has 236 pads and is not a standard BGA. Adapters are not an option, and I couldn't find a pinout for this chip, so for me, it's a dead end.
